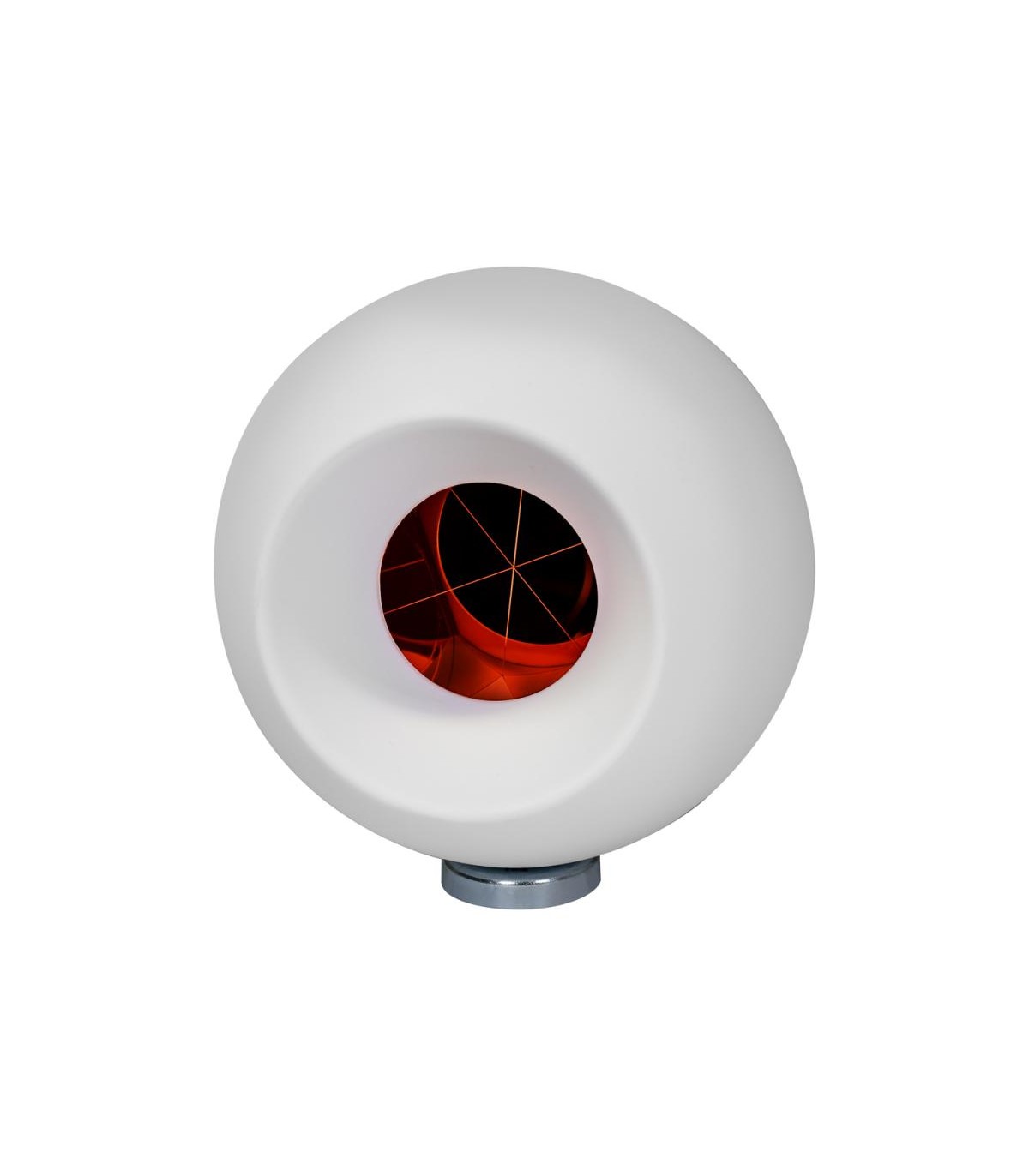

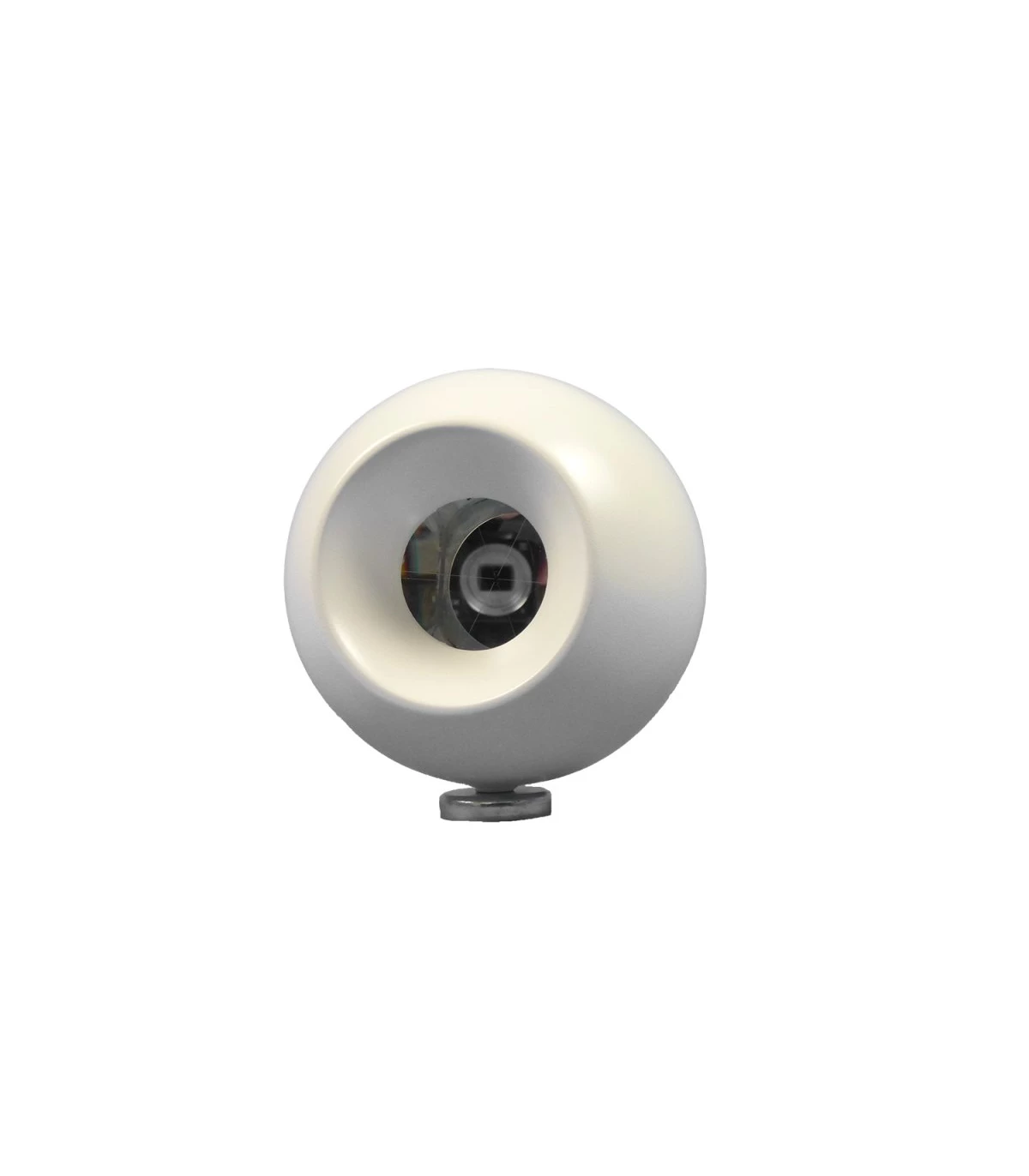

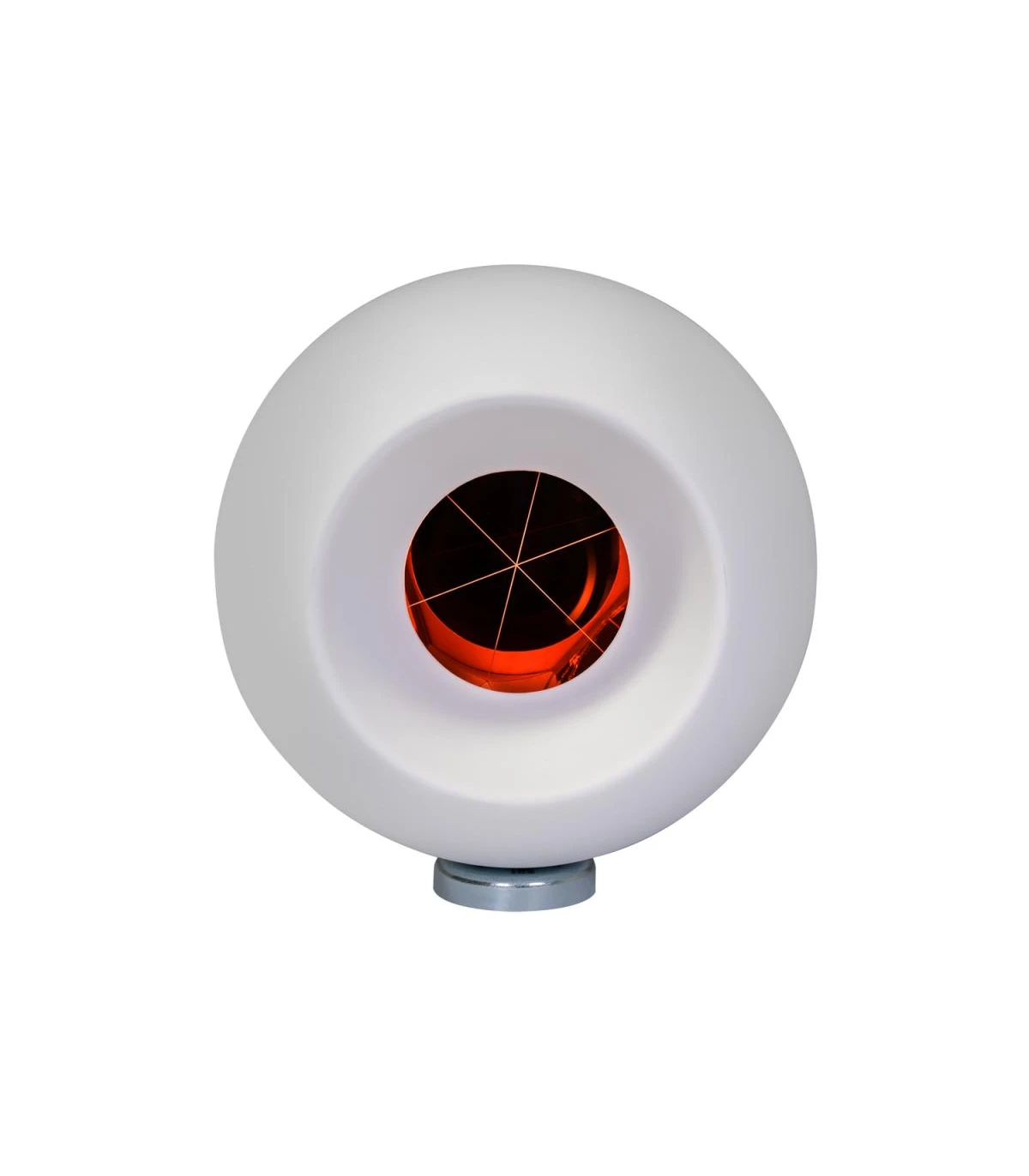

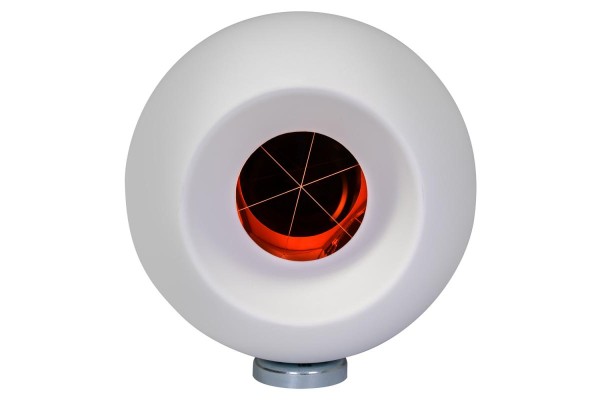

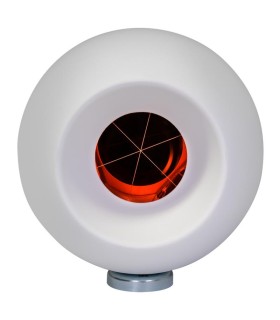

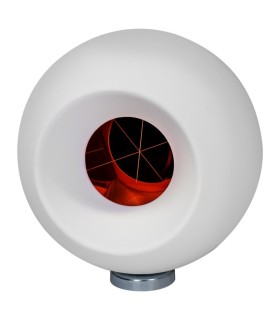

Sphère de référence avec prisme intégré

Due to the plastic measurement sphere with integrated prism, you gain a maximum of flexibility. Due to the combination of an extra precisely machined reference sphere and a prism mirror in the sphere's center, laser scan data and tacheometric measurements can be linked quickly and straightforwardly. Since the sphere has the same diameter as our approved reference spheres, you can integrate the sphere into your laser scanning projects without any problems.

Product characteristics

• diameter of the sphere: 145mm (5.71 in)
• weight: 0.55kg
• A precisely integrated prism is located in the center of the sphere.
• prism constant: -34.4mm (-1.35 in) / Leica: 0mm (0 in)
• The spherical shape allows an optimum detection from all sides during scanning.
• The reference sphere has a special varnish for optimum reflectivity.
• Contains a M8 female thread with a magnet screwed-in
